FEATURES

• Ultra High Pressurized slurry flow design,with the best formation of diamond disks, & efficient nozzle arrangement is able to :
• ensure the perfect development and　collapse of cavities, discharging such high　energies (Cavitation Damage)
• improve the basic functions, crushing,　dispersing, emulsifyiung, by such a high　efficient cavition damage
• provide longer parts life
• Long established experience in designing,　manufacturing, and engineeing ensures :
• better man / machineinterface
• easy cleaning, maintenance of the systems

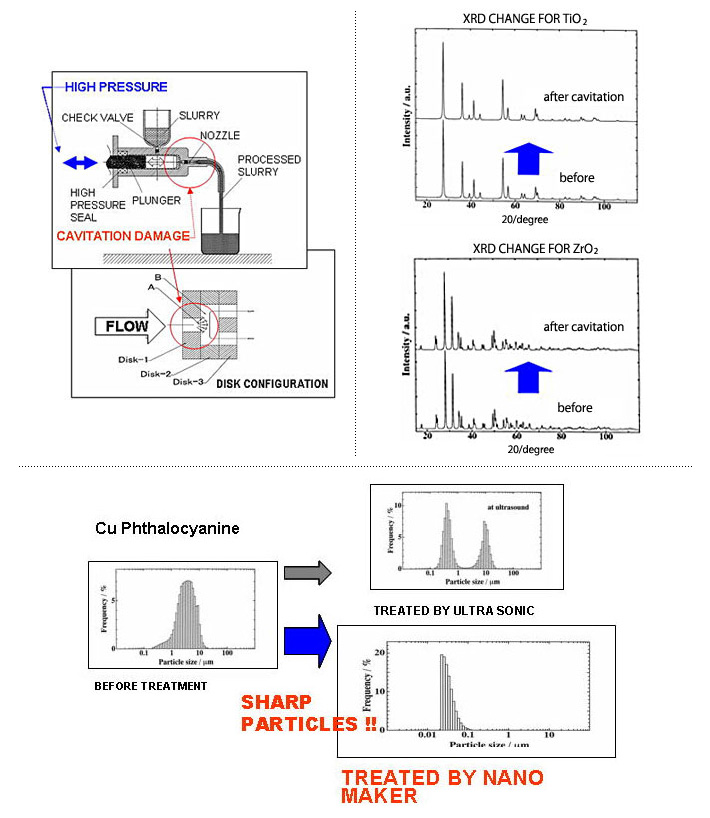

SYSTEM CONCEPT

• Cavities are effectively generated in the slurry, passing through the special designed disks
  and nozzle configuration, and then rapidly collapsed reaching at the open area.
• The high energy is cleated over the particles, when the cavities are disappearing.
• The Process, "Cavitataion Damage" enforces the crushing, dispersing, and emulsifying,
  which creates such fine nano particles.

APPLICATIONS

• PIGMENT
• CARBON BLACK
• CMP SLURY
• RARE METALS
• NICKEL
• ALUMINA
• ZIRCONIUM
• CARBON NANO TUBE
• COSMETIC MATERIALS
• CERAMICS
• FERRITE MIX POWDER
• ALUMINUM CHLORIDE
• CARBON MATERIAL
• DRUG MATERIAL
• METAL POWDER
• GRAPHITE
• SILICA
• FOOD ADDITIVES

& OTHERS

TEST DATA

MATERIALS	PROCESSING		SOLVENT	PROCESSING		REMARKS
	D50(μm)	D90(μm)		D50(μm)	D90(μm)
ALUIMINA	3.41	5.10	WATER	1.98	3.40	150MPa/1Pass
INDIUM	0.34	2.12	ETHANOL	0.08	0.12	130MPa/3Pass
CARBON BLACK	25.13		WATER	0.98		130MPa/2Pass
COBALT	6.72	11.80		1.73	2.98	150MPa/3Pass
ZINC OXIDE	3.60	6.70	WATER	0.45	1.32	100MPa/3Pass
TITANIUM OXIDE	19.20			0.23		100MPa/3Pass
MAGNETIC MATERIAL (MSG-W11)	0.38			0.08		100MPa/5Pass
ZIRCONIUM	26.80		WATER	0.46		100MPa/3Pass
CALCIUM CARBONATE	0.45	1.51	WATER	0.18	0.24	150MPa/3Pass
NICKEL	0.88	4.47		0.41	0.52	150MPa/3Pass
γ-HEMUTITE	2.00			0.43		100MPa/3Pass
LITIUM ALUMINATE (LiAIO2)	19.78			0.32		100MPa/3Pass

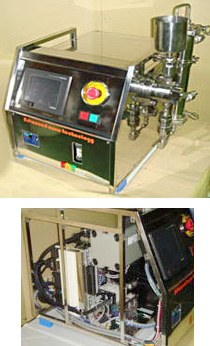

LINE UP

MODEL	LSU-2010P14	DSU-2515P16	PR-***/***
MAX PRESSURE (MPa)	200	250	30～200
MAX FLOW RATE (L/h)	10	15	30～3,000
CONSUMPTION OF ELECTRICITY (k/W)	1.5	2.5	3.7～5.5
DIMENSION (W×D×H/mm)	600(W)×550(D)×400(H)	700(W)×700(D)×1400(H)	CUSTOMER REQUIREMENT BASIS
DRIVE	AC 200V	AC 200V
REMARKS	FOR LABO & SMALL PRODUCTION	CHILLED WATER NEEDED
